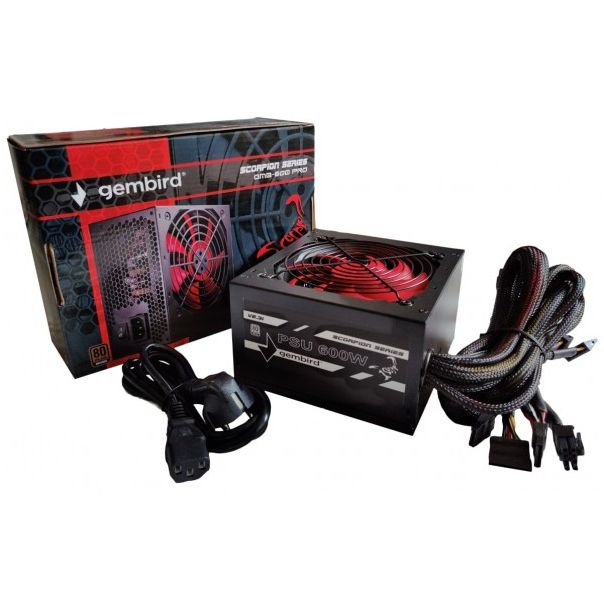

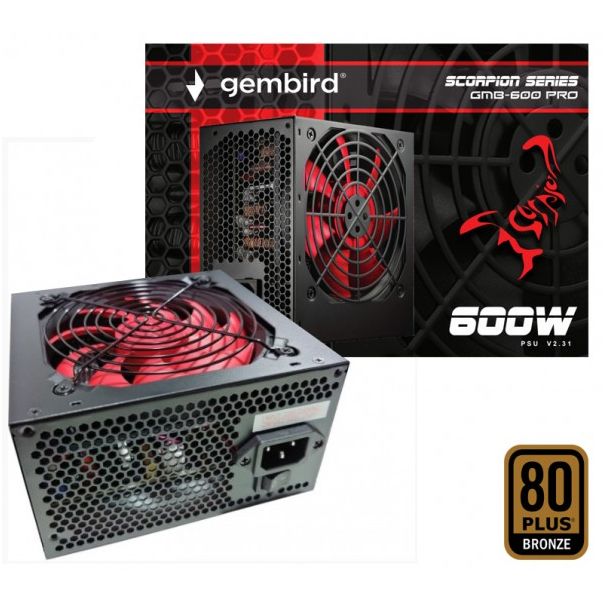

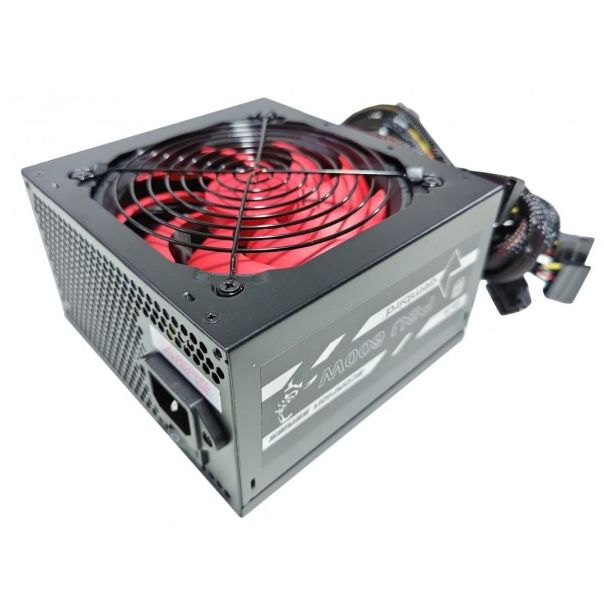

GEMBIRD GMB-600-PRO napajanje 600W 80+BRONZE

Manufacturer : Gembird - Scorpion Series
Model: GMB-600 PRO
Power: 600W 80+ BRONZE , CE/TuV/ ROHS
Format: ATX V2.31 and EPS SINGLE-RAIL
- Active PFC
- Energy efficiency 80+ BRONZE : 82%, 85%, 82% at 20%, 50%, 100% load
- Red color 12cm ball bearing Fan temperature controlled for low-noise performance. MTBF: 100,000 h
- Protection: OVP/ UVP/ OPP/ SCP (Over Voltage Protection, Under Voltage Protection, Over Power Protection, Short Circuit Protection)
- 100% burn-in/vibration/Hi Pot/Leakage current Test.
- Incl. 1.2m EU power cord
- Input socket +I/O
- On/Off Switch
- Cable length: all > 50cm.
Dimension: 150x140x85mm

- Connectors, cables all with BLACK MESH :
1x MB ATX 12V 20+4 Pin (50cm)
1x CPU ATX12V 4+4 Pin (55cm)
2x PCI-E 6+2 (8) Pin (45cm + 15cm)
2x Molex 4 Pin (50molex +15sata +15sata)
5x S-ATA (50molex +15sata +15sata +15sata)

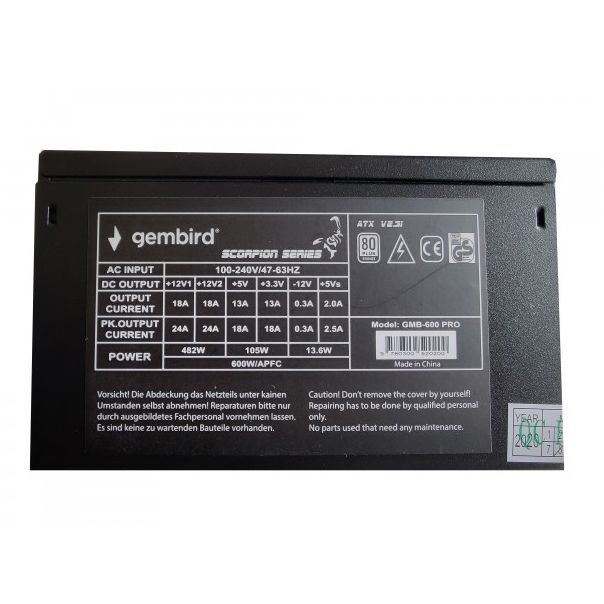

DC-Output:
+12V SINGLE RAIL : nominal 36A (peak 48A) for MB + GPU like AMD Radeon RX5700
+5V : 13A (peak 18A)
+3.3V : 13A (peak 18A)
-12V : 0.3A (peak 0.3A)
+5Vsb : 2.0A (peak 2.5A)

==================================================================
Proizvodac: Gembird - Scorpion Series
Model: GMB-600 PRO
Snaga: 600V 80+ BROZA, CE / TuV / ROHS
Format: ATX V2.31 i EPS
- Aktivni PFC
- Energetska efikasnost 80+ BROZA: 82%, 85%, 82% pri 20%, 50%, 100% opterec ́enja
- Ventilator sa kuglicnim ležajem crvene boje od 12cm, za performanse sa niskom bukom. MTBF: 100.000h
- Zaštita: OVP / UVP / OPP / SCP (Zaštita od prenapona, Podnaponska zaštita, Zaštita od prekomerne struje, zaštita od kratkog spoja)
- 100% izgaranje / vibracije / Hi Pot / Test curenja struje.
- Pakovanje sadrži EU kabl za napajanje od 1,2m
- Ulazna uticnica + I / O
- Prekidac za ukljucivanje / iskljucivanje
- Dužina kabla: sve > 50cm.
Dimenzije: 150x140x85mm

- Konektori, kablovi sa CRNIM MREŽAMA:
1x MB ATX 12V 20+4 Pin (50cm)
1x CPU ATX12V 4+4 Pin (55cm)
2x PCI-E 6+2 (8) Pin (45cm + 15cm)
2x Molex 4 Pin (50molex +15sata +15sata)
5x S-ATA (50molex +15sata +15sata +15sata)

DC-izlaz:
+ 12V SINGLE RAIL: nominalno 36A (maksimum 48A) za MB + GPU poput AMD Radeon RX5700
+ 5V: 13A (maksimum 18A)
+ 3.3V: 13A (maksimum 18A)
-12V: 0,3A (maksimum 0,3A)
+ 5Vsb: 2.0A (maksimum 2.5A)
